Name: E3MUPS200KHS-easy-ups-3m-200kva-400v-33-ups-for-external-batteries-startup-5x8/
SKU: 5214
Availability: InStock

Sale! 5%

Original price was: EGP2,000,000.00.Current price is: EGP1,900,000.00.

Add to wishlist

Add to compare

Category: Line Interactive UPS

Brand: Schneider Electric

Product Information

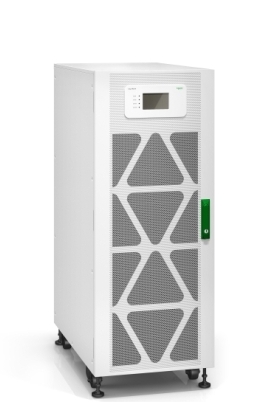

Easy UPS 3M 200kVA 400V 3:3 UPS for external batteries, Start-up 5×8
E3MUPS200KHS

Easy UPS 3M is easy to install, connect, use, and service
Parallel up to 6 Easy UPS 3M UPSs for capacity or redundancy
Battery flexibility, including compatibility with Galaxy Lithium-ion battery cabinets
Easy Loop test verifies UPS performance before you connect your load, without the need for a load bank
IP20 (optional IP30, IP40, and IPX2 kits available)

Description
Reviews (0)

Description

Specifications

Overview
Presentation	Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 200 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5×8 start-up service.

Main
Main Input Voltage	400 V AC 3 phases 380 V AC 3 phases 415 V AC 3 phases
Input voltage	380 V 415 V
Maximum input current	336 A
Max short time withstand current	10 kA
Input harmonic distortion	Less than 3 % for full load
Load power factor	0.5 leading to 0.5 lagging without derating
Cos phi	0.99
Input voltage limits	342…477 V
Network frequency	40…70 Hz
Output voltage	400 V AC 3 phases 380 V AC 3 phases 415 V AC 3 phases
Output voltage	380 V 415 V
Rated power in W	200 kW
Rated power in VA	200 kVA
Harmonic distortion	Less than 3 %
Maximum configurable power in VA	200 kVA
Maximum configurable power in W	200 kW
Output harmonic distortion	< 3% linear load and < 5% non-linear load
Output overload operation	10 minutes at 125% and 60 seconds at 150%
Output voltage tolerance	+/- 1 %
UPS type	Double conversion online
Wave type	Sine wave
Output frequency	50 Hz sync to mains 60 Hz sync to mains

Complementary
Battery type	Lead-acid external sold separately
Control panel	Touch screen LCD user interface
UPS connectivity	Pre-installed network management card 3
Colour	White (RAL 9003)
Height	130 cm
Width	60 cm
Depth	85 cm
Product weight	304 kg
USB compatible	Yes
Provided equipment	Dust filter Installation guide Start-up service
Range of product	Easy UPS 3M
Product or component type	Uninterruptible power supply (UPS)

Environment
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-25…55 °C
Storage altitude	0…15240 m
IP degree of protection	IP20
Relative humidity	0…95 % non-condensing
Storage Relative Humidity	0…95 % non-condensing
Acoustic level	72 dBA
Heat dissipation	34121 Btu/h
Operating altitude	0…4921 ft
